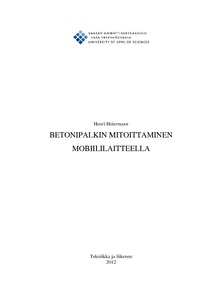

Betonipalkin mitoittaminen mobiililaitteella
Heiermann, Henri (2012)
Heiermann, Henri
Vaasan ammattikorkeakoulu
2012
All rights reserved
Julkaisun pysyvä osoite on
https://urn.fi/URN:NBN:fi:amk-201205148118
https://urn.fi/URN:NBN:fi:amk-201205148118
Tiivistelmä
Työn lähtökohtana oli suunnitella ja toteuttaa betonipalkin mitoitukseen kolme ohjelmaa, jotka toimivat mobiililaitteilla. Betonipalkit on rajoitettu yksiaukkoisesta palkista kolmeaukkoiseen palkkiin. Jokainen ohjelma mitoittaa yhden ym. ta-pauksista. Ohjelmissa voi valita kuormitukseksi tasaisen kuorman tai pistekuorman. Lisäksi valittavana on erilaisia tuentamalleja. Ohjelmat laskevat palkin statiikan, taivutus sekä leikkausraudoituksen määrän, vääntökapasiteetin sekä hal-keamaleveyden.
Työ tehtiin helpottamaan työmaalla toimivien insinöörien tarkastusmahdollisuutta rakentamisessa sekä nuorten suunnittelijoiden avuksi toimistossa. Ohjelmat käyt-tävät statiikan ratkaisemiseen yksinkertaistettuja kaavoja ja mitoitus tapahtuu eu-rokoodien mukaan.
Ohjelmista oli tarkoitus tehdä käyttäjäystävällisiä ja helppokäyttöisiä. Ohjelma toteutettiin käyttämällä javascript-ohjelmointikieltä.
The idea of this work was to design and produce three programs that calculates concrete beams and are operated by mobile devices. With these programs it is possible to calculate a single beam, two-span beam and three-span beam. Each programs calculates one of the before named cases. Out of these programs you can choose different kinds of loads (uniformly load and single load). Also it is possible to choose different kinds of supports (fixed, pinned or free support). The programs calculates statics, shear and tension reinforcement, torsion shaft capacity and crack width.
The programs have been made in order to help the engineers on the construction site or in offices to check calculations. These programs helps young engineers by giving them confidence. The programs uses simplified formulas to statistic, and design is made by using Eurocodes.
The meaning with these programs is that the final product is user friendly and easy to use. The programs were made by using Javascript language.
Työ tehtiin helpottamaan työmaalla toimivien insinöörien tarkastusmahdollisuutta rakentamisessa sekä nuorten suunnittelijoiden avuksi toimistossa. Ohjelmat käyt-tävät statiikan ratkaisemiseen yksinkertaistettuja kaavoja ja mitoitus tapahtuu eu-rokoodien mukaan.
Ohjelmista oli tarkoitus tehdä käyttäjäystävällisiä ja helppokäyttöisiä. Ohjelma toteutettiin käyttämällä javascript-ohjelmointikieltä.
The idea of this work was to design and produce three programs that calculates concrete beams and are operated by mobile devices. With these programs it is possible to calculate a single beam, two-span beam and three-span beam. Each programs calculates one of the before named cases. Out of these programs you can choose different kinds of loads (uniformly load and single load). Also it is possible to choose different kinds of supports (fixed, pinned or free support). The programs calculates statics, shear and tension reinforcement, torsion shaft capacity and crack width.
The programs have been made in order to help the engineers on the construction site or in offices to check calculations. These programs helps young engineers by giving them confidence. The programs uses simplified formulas to statistic, and design is made by using Eurocodes.
The meaning with these programs is that the final product is user friendly and easy to use. The programs were made by using Javascript language.
