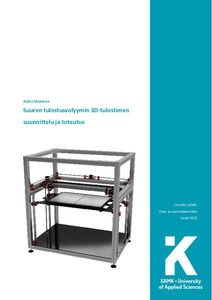

Suuren tulostusvolyymin 3D-tulostimen suunnittelu ja toteutus
Moilanen, Aleksi (2022)
Moilanen, Aleksi
2022
Julkaisun pysyvä osoite on
https://urn.fi/URN:NBN:fi:amk-2022052411606
https://urn.fi/URN:NBN:fi:amk-2022052411606
Tiivistelmä
Opinnäytetyön tavoitteena oli suunnitella ja toteuttaa lankatulostusmenetelmää (FDM) hyödyntävä 3D-tulostin, jolla olisi 3D-tulostinmarkkinoista poikkeavan suuri tulostuskoko.
Ensimmäisissä suunnitelmissa tulostimelle kaavailtiin jopa 1000 x 1000 x 500 millimetrin kokoisen kappa-leen tulostusmahdollisuus, mutta tämän saavuttamiseksi itse tulostimen koko olisi kasvanut niin suureksi, että sille olisi vaikeaa löytää säilytyspaikkaa. Tämän vuoksi tulostimen lopullista tulostuskokoa päätettiin pienentää 600 x 400 x 500 millimetriin. Laitteen ulkomitoiksi muodostui 1030 x 740 x 1100 millimetriä ja laitteen kokonaispaino oli noin 70 kilogrammaa.
Opinnäytetyön työosuus kattoi 3D-tulostimen mekaniikan sekä elektroniikan suunnittelun. Mekaniikka-suunnitteluun sisältyi tulostimen rungon sekä sen liikkuvien osien, kuten akselien suunnittelun. Suunnittelu toteutettiin Autodesk Fusion 360 -mallinnusohjelmalla. 3D-tulostimen elektroniikkasuunnitteluun sisältyi tulostimen emolevyn suunnittelu. Emolevyn tarkoituksena on ohjata kaikkia tulostimen liikkuvia osia sekä ohjata ja seurata tulostusprosessia ohjauskoodin sekä mitattavan anturidatan perusteella. Emolevyn suun-nittelu toteutettiin Autodesk Eagle -piirilevynsuunnitteluohjelmalla.
Opinnäytetyön tuloksena syntyi pientä jatkokehitystä vaativa 3D-tulostimen mekaniikka sekä täysin toimiva elektroniikka. Tulostinkokonaisuuden täyttä toimivuutta ei kuitenkaan saatu testattua, koska tulostimen tulostusohjelmisto päätettiin toteuttaa vasta opinnäytetyön jälkeen erillisenä projektina. Tulostimen toteut-tamisessa alkuperäinen 2000 euron budjetti kuitenkin ylittyi 850 eurolla johtuen suurista toimituskuluista sekä ylimääräisistä jo kehitysprosessin aikana korvatuista osista.
Opinnäytetyöllä ei ollut erillistä toimeksiantajaa, vaan 3D-tulostin toteutettiin harrastekäyttöön. The goal of this Bachelor’s thesis was to design and build a 3D printer which uses the FDM printing method and has a larger printing size compared to the other printers on the market.
The first plans were to design a printer which could print a piece of up to 1000 x 1000 x 500 millimeters, but to achieve this, the size of the printer would have grown so large that it would be difficult to find space for the printer. It was decided to reduce the printing size to 600 x 400 x 500 millimeters. The external di-mensions of the device were 1030 x 740 x 1100 millimeters and the total weight of the device was about 70 kilograms.
A part of the thesis covered the mechanics of the 3D printer and the design of the electronics. The me-chanics of the design included the design of the printer body, as well as its moving parts such as shafts. The design was performed using Autodesk Fusion 360 modeling software. The electronics design of the 3D printer included the design of the printer’s motherboard. The motherboard is used to control all the mov-ing parts of the printer, and control and follow the printing process based on the control code and meas-ured sensor data. The motherboard was designed using the Autodesk Eagle PCB design software.
The result of the thesis were the mechanics of a 3D printer that requires little further development, as well as fully functional electronics. The full functionality of the printer could not be tested, because it was decided to implement the printer’s firmware as a separate project after the thesis. The initial budget of 2 000 euros was exceeded by 850 euros, due to high delivery costs and additional parts which were already replaced during the development process.
The thesis did not have a commissioner, so the 3D printer was designed and built for recreational use.
