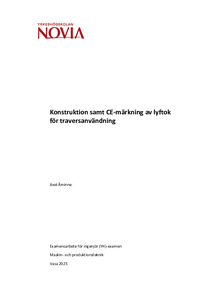

Konstruktion samt CE-märkning av lyftok för traversanvändning
Åminne, Axel (2025)
Åminne, Axel
2025
All rights reserved. This publication is copyrighted. You may download, display and print it for Your own personal use. Commercial use is prohibited.
Julkaisun pysyvä osoite on
https://urn.fi/URN:NBN:fi:amk-2025051512161
https://urn.fi/URN:NBN:fi:amk-2025051512161
Tiivistelmä
Examensarbetet behandlade konstruktionen och CE märkningen av ett nytt lyftok för traversanvändning vid Ab Solving Oy. Lyftoket möjliggör säker hantering av tunga laster som överstiger kapaciteten hos en enskild travers genom att sammankoppla två traverser till en gemensam lyftpunkt. Detta bidrar till en säkrare arbetsmiljö och effektivare produktionsprocesser.
Syftet med arbetet var att planera och konstruera ett pålitligt och arbetsvänligt lyftok som uppfyller både företagets behov och gällande säkerhetskrav. Arbetet omfattar planering, konstruktion, CE märkning, modellering, framtagning av tillverkningsritningar, hållfasthetsberäkningar med Finita elementmetoden samt framtagande av instruktionsmanual och data för typskylt.
Genomförandet inleddes med en behovsanalys och inskolning hos företaget, följt av planering och utformning av lyftoket i CAD programmet SolidWorks. Därefter utfördes FEM analyser för att säkerställa konstruktionens hållfasthet under olika belastningsfall. Arbetet inkluderar även granskning av relevanta standarder, såsom SFS EN 13155:2020 och SFS EN 12100:2010, samt genomgång av CE märkningsprocessen enligt EU direktiv. Slutligen dokumenterades hela processen och tillverkningsritningar togs fram.
Resultatet visar att lyftoket uppfyller både företagets önskemål och de krav som ställs enligt gällande standarder och CE märkningsdirektiv. The thesis addressed the design and CE marking of a new lifting beam for overhead crane use at Ab Solving Oy. The lifting beam enables the safe handling of heavy loads that exceed the capacity of a single crane by connecting two cranes to a common lifting point. This contributes to a safer working environment and more efficient production processes.
The purpose of the work was to plan and design a reliable and user friendly lifting beam that meets both the company's needs and current safety requirements. The work included planning, design, CE marking, modeling, preparation of manufacturing drawings, strength calculations using the Finite Element Method, as well as the development of an instruction manual and data for the identification plate.
The implementation began with a needs analysis and orientation at the company, followed by the design and modeling of the lifting beam using the CAD software SolidWorks. FEM analyses are then conducted to ensure the structural integrity of the beam under various load cases. The work also includes a review of relevant standards, such as SFS EN 13155:2020 and SFS EN 12100:2010, as well as the CE marking process according to EU directives. Finally, the entire process is documented, and the necessary production drawings are created.
The results show that the lifting beam meets both the company’s expectations and the requirements set by applicable standards and CE marking directives.
Syftet med arbetet var att planera och konstruera ett pålitligt och arbetsvänligt lyftok som uppfyller både företagets behov och gällande säkerhetskrav. Arbetet omfattar planering, konstruktion, CE märkning, modellering, framtagning av tillverkningsritningar, hållfasthetsberäkningar med Finita elementmetoden samt framtagande av instruktionsmanual och data för typskylt.
Genomförandet inleddes med en behovsanalys och inskolning hos företaget, följt av planering och utformning av lyftoket i CAD programmet SolidWorks. Därefter utfördes FEM analyser för att säkerställa konstruktionens hållfasthet under olika belastningsfall. Arbetet inkluderar även granskning av relevanta standarder, såsom SFS EN 13155:2020 och SFS EN 12100:2010, samt genomgång av CE märkningsprocessen enligt EU direktiv. Slutligen dokumenterades hela processen och tillverkningsritningar togs fram.
Resultatet visar att lyftoket uppfyller både företagets önskemål och de krav som ställs enligt gällande standarder och CE märkningsdirektiv.
The purpose of the work was to plan and design a reliable and user friendly lifting beam that meets both the company's needs and current safety requirements. The work included planning, design, CE marking, modeling, preparation of manufacturing drawings, strength calculations using the Finite Element Method, as well as the development of an instruction manual and data for the identification plate.
The implementation began with a needs analysis and orientation at the company, followed by the design and modeling of the lifting beam using the CAD software SolidWorks. FEM analyses are then conducted to ensure the structural integrity of the beam under various load cases. The work also includes a review of relevant standards, such as SFS EN 13155:2020 and SFS EN 12100:2010, as well as the CE marking process according to EU directives. Finally, the entire process is documented, and the necessary production drawings are created.
The results show that the lifting beam meets both the company’s expectations and the requirements set by applicable standards and CE marking directives.
