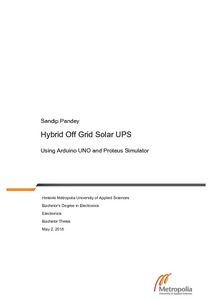

Hybrid Off Grid Solar UPS
Pandey, Sandip (2018)
Metropolia Ammattikorkeakoulu
2018
All rights reserved
Julkaisun pysyvä osoite on
https://urn.fi/URN:NBN:fi:amk-201805168438
https://urn.fi/URN:NBN:fi:amk-201805168438
Tiivistelmä
The main objective of this thesis report was to study the basic working principle of Hybrid off-grid solar powered UPS and create a simulation model on Proteus 7.10.
In this project, solar panel and AC mains were used to charge the battery and AC mains, inverter and diesel generator were used to provide the supply voltage for operating loads by switching relays with the help of Darlington pair ULN 2003A.
The study of this project was carried out by implementing the theoretical concept, theorem, and principles into a concrete model. The simulation of the circuit was carried out by using Proteus simulation software.
The final result of the project was carried out in the simulation where it shows that the charging of the battery was carried out by supply from mains or solar energy whereas the load was operated by using supply from mains, inverter or diesel generator.
In this project, solar panel and AC mains were used to charge the battery and AC mains, inverter and diesel generator were used to provide the supply voltage for operating loads by switching relays with the help of Darlington pair ULN 2003A.
The study of this project was carried out by implementing the theoretical concept, theorem, and principles into a concrete model. The simulation of the circuit was carried out by using Proteus simulation software.
The final result of the project was carried out in the simulation where it shows that the charging of the battery was carried out by supply from mains or solar energy whereas the load was operated by using supply from mains, inverter or diesel generator.
