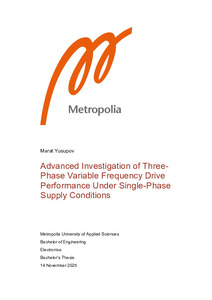

Advanced Investigation of Three-Phase Variable Frequency Drive Performance Under Single-Phase Supply Conditions
Marat, Yusupov (2025)
2025
All rights reserved. This publication is copyrighted. You may download, display and print it for Your own personal use. Commercial use is prohibited.
Julkaisun pysyvä osoite on
https://urn.fi/URN:NBN:fi:amk-2025111828363
https://urn.fi/URN:NBN:fi:amk-2025111828363
Tiivistelmä
This thesis investigates the performance of three-phase Variable Frequency Drives (VFDs) when operated under single-phase power supply conditions. VFDs are designed for balanced three-phase input, practical constraints in residential, rural, and retrofit applications often necessitate their operation from single-phase sources. Such adaptation introduces significant electrical and thermal challenges, including increased DC-link voltage ripple, elevated harmonic distortion, and component stress, particularly across the rectifier and DC-link capacitors.
The research combines theoretical modelling with laboratory experimentation using an ABB ACS480 three-phase 230V VFD. Parameters such as DC-link voltage ripple, input and output current waveforms, and thermal characteristics were measured under both three-phase and single-phase supply conditions. Results indicate that single-phase operation produces approximately threefold higher DC-link ripple amplitude, accompanied by a 6-15 °C temperature rise in key components. Despite these stresses, stable operation was maintained up to 65% torque rating, validating the applicability of derating practices recommended by manufacturers and standards.
Thesis concludes that single-phase operation of three-phase VFDs is technically feasible but requires derating, improved thermal management, and adherence to harmonic limits prescribed by IEC 61800-3 and IEEE 519. The findings provide practical guidelines for engineers and system integrators, offering an empirically supported framework for safe and efficient adaptation of three-phase VFDs in single-phase environments.
The research combines theoretical modelling with laboratory experimentation using an ABB ACS480 three-phase 230V VFD. Parameters such as DC-link voltage ripple, input and output current waveforms, and thermal characteristics were measured under both three-phase and single-phase supply conditions. Results indicate that single-phase operation produces approximately threefold higher DC-link ripple amplitude, accompanied by a 6-15 °C temperature rise in key components. Despite these stresses, stable operation was maintained up to 65% torque rating, validating the applicability of derating practices recommended by manufacturers and standards.
Thesis concludes that single-phase operation of three-phase VFDs is technically feasible but requires derating, improved thermal management, and adherence to harmonic limits prescribed by IEC 61800-3 and IEEE 519. The findings provide practical guidelines for engineers and system integrators, offering an empirically supported framework for safe and efficient adaptation of three-phase VFDs in single-phase environments.
